DA3000
Maximum measurement accuracy: 0.001mm
Repeatability: ±0.003mm
Lens magnification: 4X
Automatic platform system: Y-axis automatic
Maximum measuring height: 1mm
Optical inspection system: color 300 million pixel CCD
Laser System: Red Laser Module (Secondary Laser)
Measuring principle: Non-contact laser beam
SPC软件/SPC： Cpk.cp.xbar R﹠S
Computer system: Desktop computer WIN7
Software language version: Chinese Simplified - English
Power supply: Single-phase AC 220V, 60/50HZ
Equipment dimensions: 460mm(W)*475mm(D)*360mm(H)
Weight: 20KG
Classification:
Solder paste thickness gauge
Key words:
密度
Contact Us
Product Description

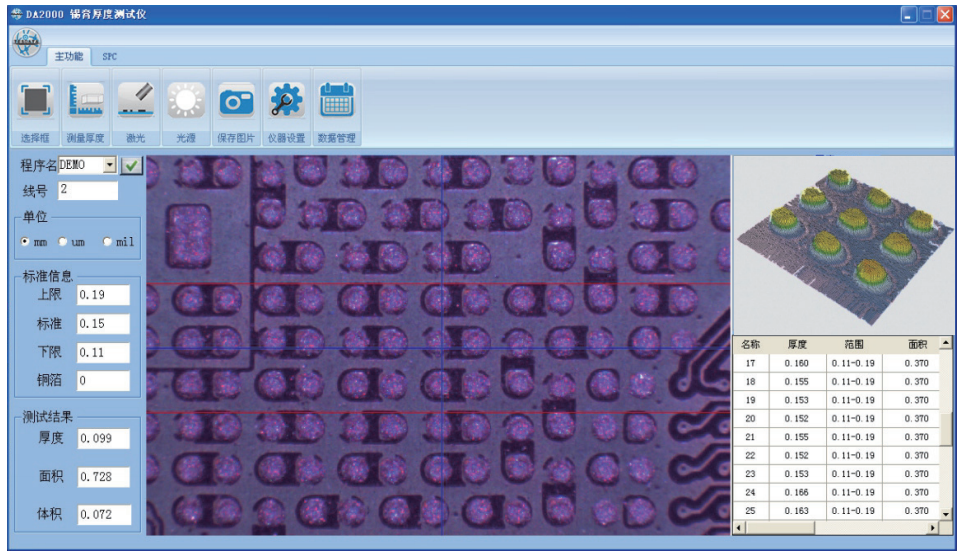

software interface

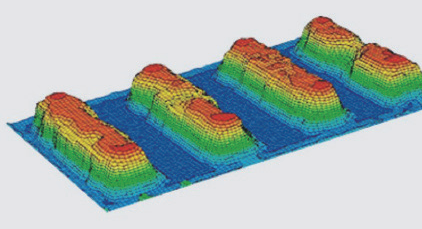

3D rendering
