T60i
Number of tester channels: 6 Memory: 32MB(8 million points)
Acquisition Frequency: 0.05S~1800S Accuracy: ±0.5 ℃
Resolution: 0.1 ℃ Operating Voltage: DC3.7~4.2V
Battery: 450mAH Thermocouple type: K type
Power Consumption: ≤15mAH Maximum internal working temperature: 85 ℃/100 ℃

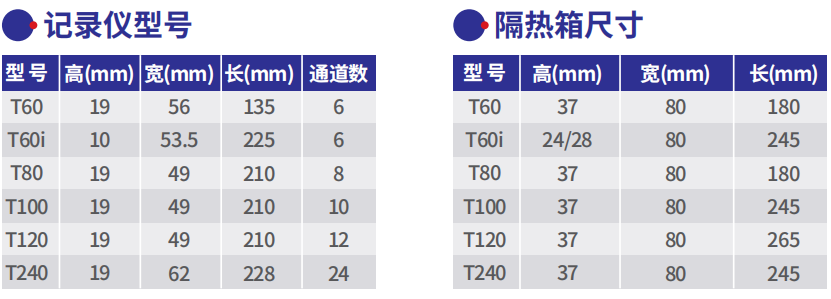

Instrument size: 10mm(H)*53.5mm(W)*225mm(D)
Classification:
Temperature Profiling
Key words:
密度
Contact Us
Product Description
software functionality
*Curve simulation *Real-time measurement *Curve data import, export
*Curve merging *Curve modification and alignment *Drawing horizontal and vertical lines at will
*SPC analysis *Export curve data to PDF, EXCEL.

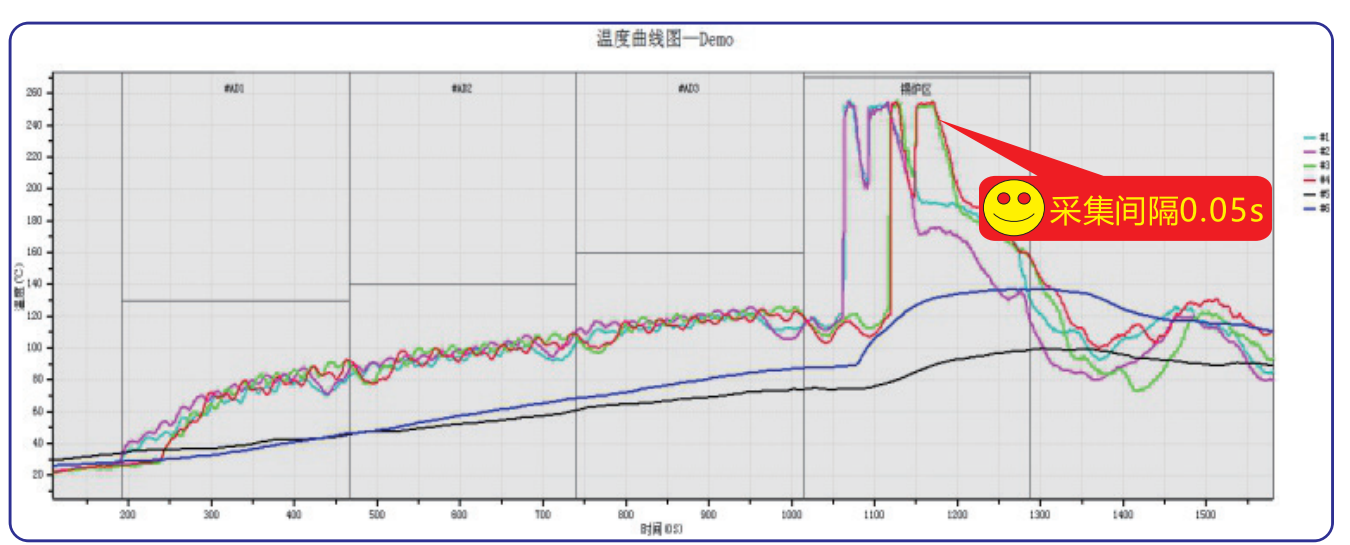

*Record the temperature of each point and reflect it through the curve.
*The change of slope, time above or below the temperature of any point
*Slope and time change between any two points.
*Accurately reflect the maximum, minimum, average temperature and standard deviation and can be set for each part of the alarm, detailed wave soldering analysis process.

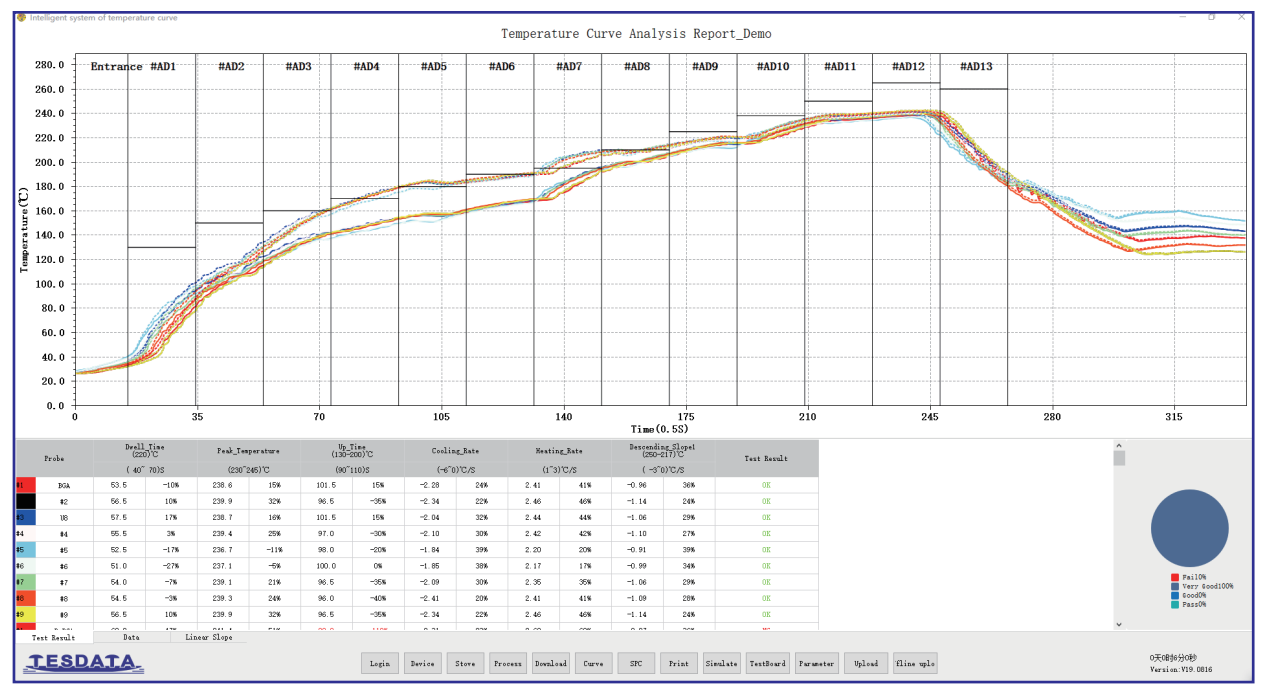

software interface
