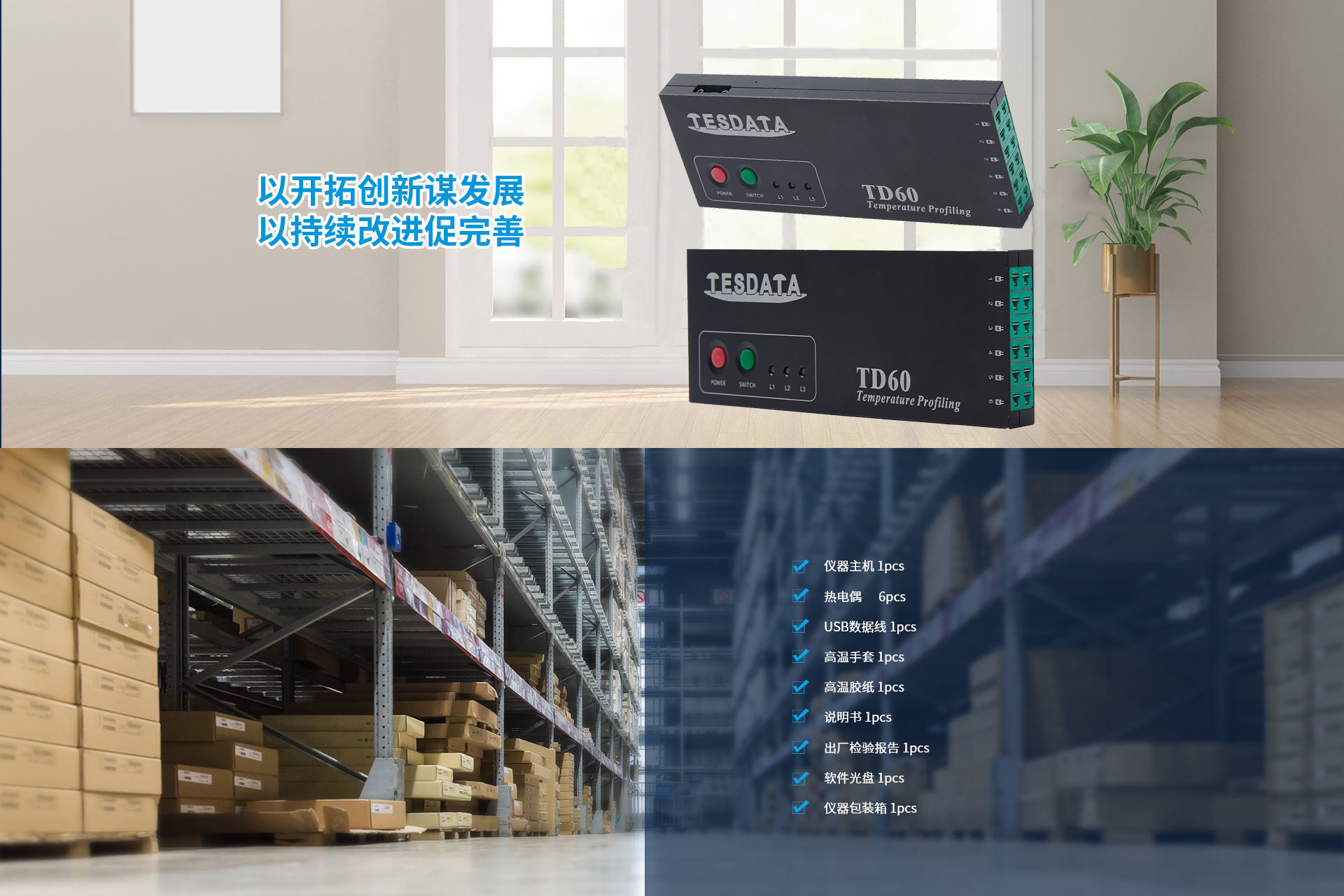

TD60
Number of tester channels: 6
Memory: 32MB
COLLECTION FREQUENCY: 0.05S~1800S
Accuracy: ±0.5°C
Resolution: 0.1 °C
Working voltage: DC3.7~4.2V
Battery: 2000mAH
Thermocouple Type: Type K
Instrument power consumption: ≤10mAH
Maximum internal working temperature: 85 ℃/100 ℃
Instrument size 19(H)*62(W)*180(D)
Classification:
Temperature Profiling
Key words:
密度
Contact Us
Product Description
software functionality
*Curve simulation *Real-time measurement *Curve data import, export
*Curve merging *Curve modification and alignment *Drawing horizontal and vertical lines at will
*SPC analysis *Export curve data to PDF, EXCEL.
*Record the temperature of each point and reflect it through the curve.
*The change of slope, time above or below the temperature of any point
*Slope and time change between any two points.
*Accurately reflect the maximum, minimum, average temperature and standard deviation and can be set for each part of the alarm, detailed wave soldering analysis process.
software interface
